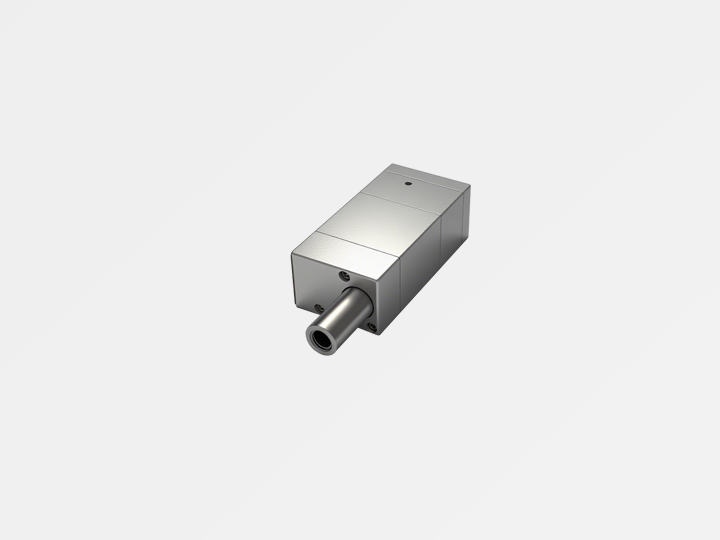

Micro Actuator LQS06Z-2.5

Applied to Dexterous Hand Thumb

The servo electric cylinder is a modular product that integrates the servo motor and screw, converting the rotational motion of the servo motor into linear motion. It transforms the best advantages of the servo motor - precise speed control, precise rotation control, and precise torque control - into precise speed control, precise position control, and precise thrust control; it is a revolutionary new product for high-precision linear motion series.

  • Model：LQS06Z-2.5
  • Main Configuration：Planetary Roller Screw + Brushless Coreless Motor

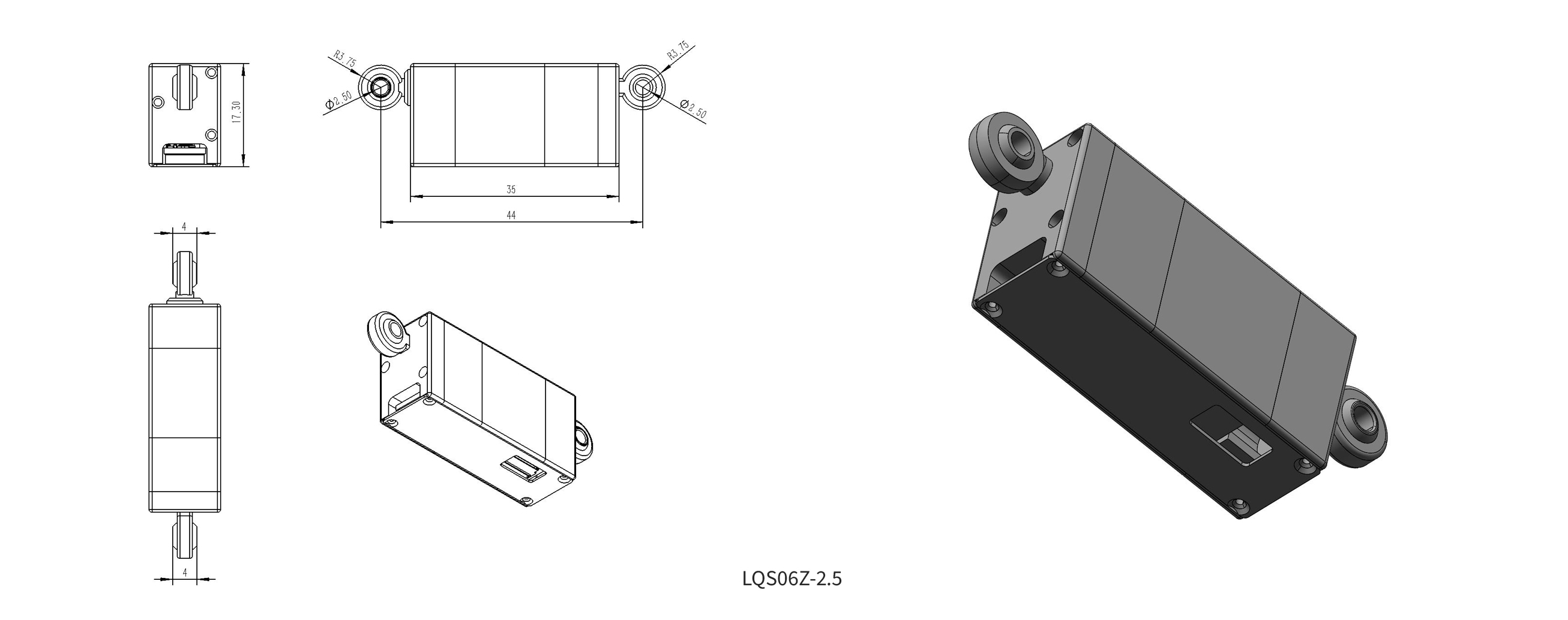

  • External Dimensions：12*17.3*35(mm)
  • Maximum Thrust：≥30N
  • Maximum Speed：≥20mm/s
  • Stroke Range：0~10mm
  • Weight：≤25g
  • Repeat Positioning Accuracy：±0.05mm
  • Rated Voltage/Current：DC12V/0.41A
  • Driver Controller：External
  • Encoder：Incremental Encoder (1024 lines)
  • Communication Protocol：RS485
  • Force Sensor：Customizable
  • IP Rating：IP54
  • Working Environment：Operating Temperature: 0～40°C (-40～60°C optional)、Storage Temperature: -40～80°C Environmental Humidity: 90% relative humidity (no condensation)
