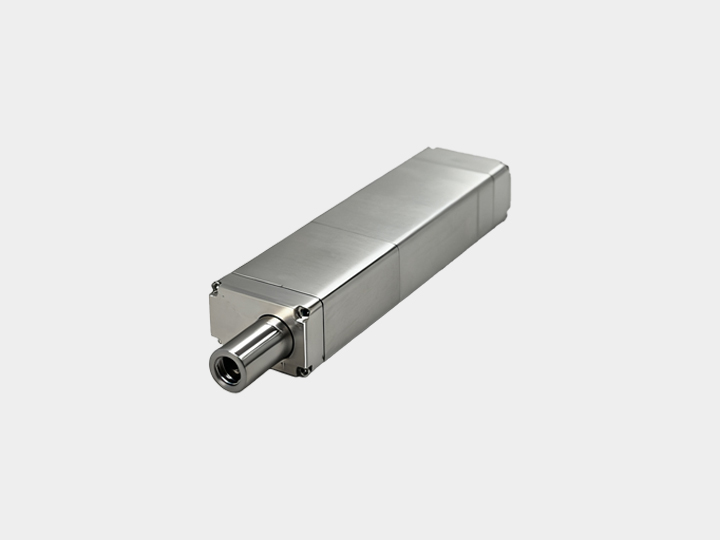

Mini Electric Cylinder

Used for Robotic Hand

Servo electric cylinder is a modular product that integrates servo motor and screw drive. It converts the rotary motion of servo motor into linear motion, while transforming the best advantages of servo motor - precise speed control, precise rotation control, and precise torque control - into precise speed control, precise position control, and precise thrust control; It is a revolutionary new product series that achieves high-precision linear motion.

  • Model: PWG08
  • Configuration: Planetary Roller Screw + Brushless Coreless Motor
  • Dimensions：10*15.8*60/10*15.8*66/10*15.8*70(mm)
  • Max Thrust：≥150N
  • Max Speed：≥17mm/s
  • Stroke: 0~10mm/0~16mm/0~20mm
  • Weight：≤35g/≤40g/≤45g
  • Repeat Positioning Accuracy：±0.02mm
  • Voltage/Current: DC12V/0.87A
  • Driver/Controller：Built-in
  • Encoder：Incremental Encoder (1024 lines) + End Feedback
  • Protocol: RS485
  • Sensor & Brake: Customizable
  • IP Rating: IP54
  • Environment: Operating Temperature: 0～40°C (-40～60°C optional)、Storage Temperature: -40～80°C Relative Humidity: 90% relative humidity (no condensation)
