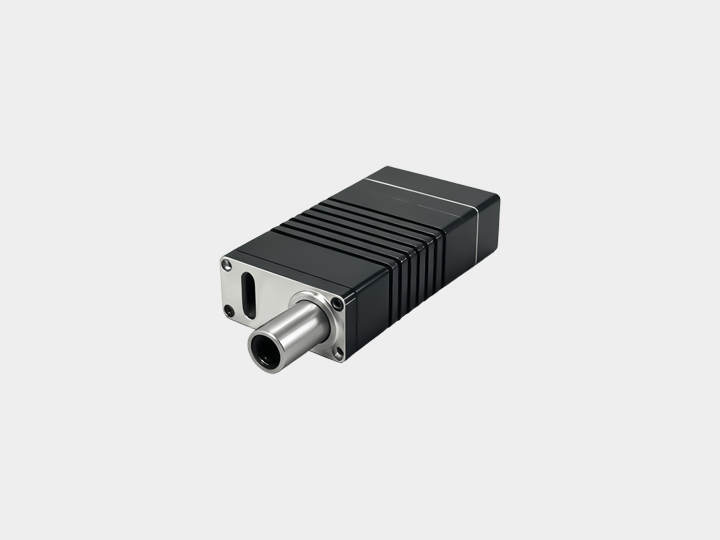

Mini Electric Cylinder

Used for Robotic Hand

Servo electric cylinder is a modular product with integrated servo motor and lead screw design. It converts the rotary motion of the servo motor into linear motion, while transforming the best advantages of servo motor - precise speed control, precise rotation control, precise torque control into - precise speed control, precise position control, precise thrust control; achieving a brand new revolutionary product for high-precision linear motion series.

  • Model: LQS06Z
  • Configuration: Planetary Roller Screw + Brushless Coreless Motor
  • Dimensions: 12*17.3*35(mm)
  • Maximum Thrust: ≥30N
  • Maximum Speed: ≥20mm/s
  • Stroke: 0~10mm
  • Weight: ≤25g
  • Repeat Positioning Accuracy: ±0.02mm
  • Rated Voltage/Current: DC12V/0.41A
  • Driver/Controller: External
  • Encoder: Incremental Encoder (1024 lines)
  • Protocol: RS485
  • Sensor & Brake: Customizable
  • IP Rating: IP54
  • Environment: Operating Temperature: 0～40°C (-40～60°C optional), Storage Temperature: -40～80°C Relative Humidity: 90% relative humidity (no condensation)
