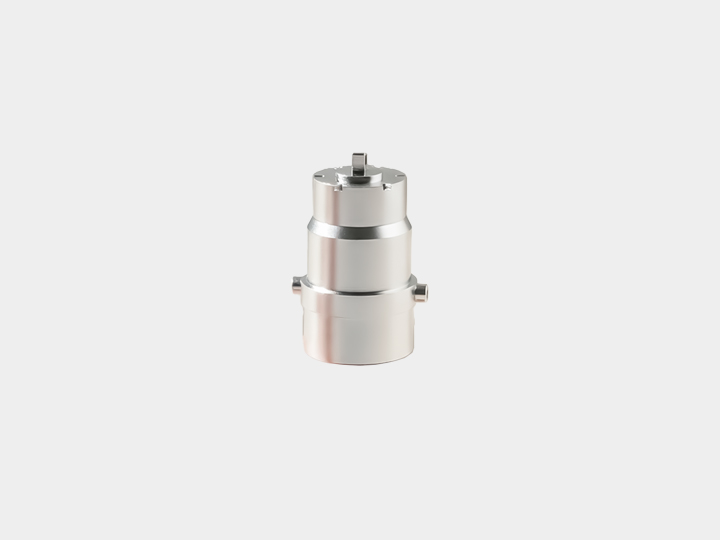

Mini Electric Cylinder

Used for Robotic Hand

The servo electric cylinder is a modular product integrating servo motor and screw drive, converting the rotary motion of servo motor into linear motion. It transforms the excellent features of servo motor - precise speed control, precise rotation control, and precise torque control - into precise linear speed control, precise position control, and precise thrust control; offering a revolutionary new product for high-precision linear motion applications.

  • Model: LQS16
  • Configuration: Planetary Roller Screw + Frameless Torque Motor
  • Dimensions：φ20*30(mm)
  • Max Thrust：≥50N
  • Max Speed：≥12.5mm/s
  • Stroke: 10mm
  • Weight：≤35g
  • Repeat Positioning Accuracy：±0.02mm
  • Voltage/Current: DC12V/1.0A
  • Driver：External
  • Encoder：Incremental Encoder (1024 lines)
  • Protocol: RS485
  • Sensor & Brake: Customizable
  • IP Rating：IP54
  • Environment: Operating Temperature: 0～40°C (-40～60°C optional), Storage Temperature: -40～80°C Relative Humidity: 90% (no condensation)
