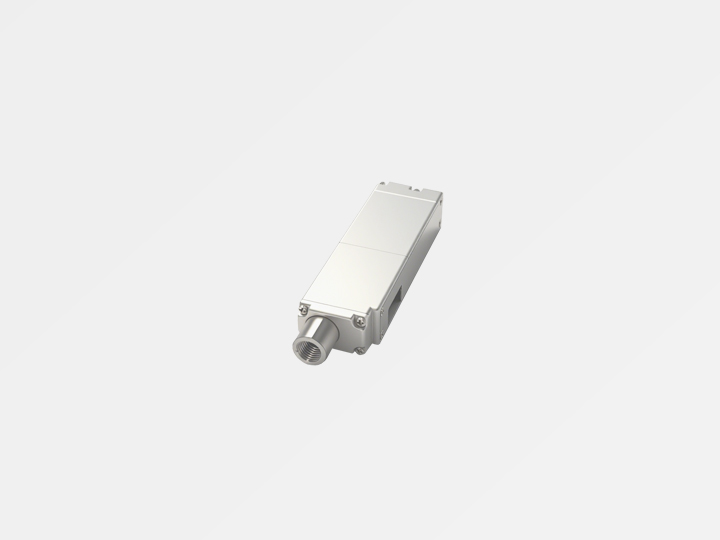

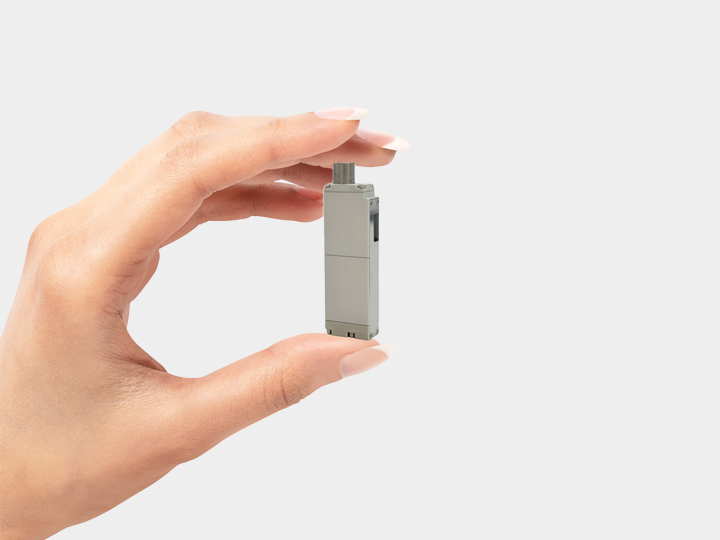

Mini Electric Cylinder

Used for Robotic Hand

The servo electric cylinder is a modular product integrating servo motor and screw drive, converting the rotary motion of servo motor into linear motion. It transforms the excellent features of servo motor - precise speed control, precise rotation control, and precise torque control - into precise linear speed control, precise position control, and precise thrust control; offering a revolutionary new product for high-precision linear motion applications.

  • Model: LQS06
  • Configuration: Planetary Roller Screw + Brushless Coreless Motor
  • Dimensions: 8*13.3*51(mm)
  • Max Thrust: ≥20N
  • Max Speed: ≥20mm/s
  • Stroke: 0~11mm
  • Weight: ≤20g
  • Repeat Positioning Accuracy: ±0.02mm
  • Voltage/Current: DC12V/0.19A
  • Driver: External
  • Encoder: Incremental Encoder (1024 lines)
  • Protocol: RS485
  • Sensor & Brake: Customizable
  • IP Rating: IP54
  • Environment: Operating Temperature: 0～40°C (-40～60°C optional), Storage Temperature: -40～80°C Relative Humidity: 90% (no condensation)
