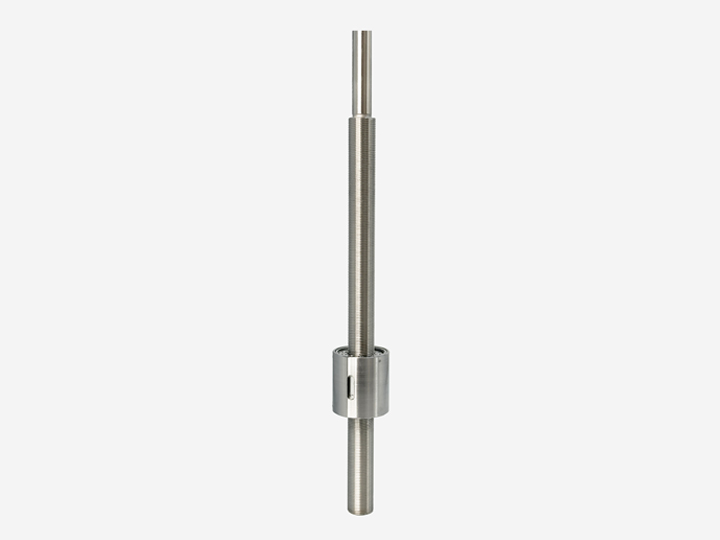

RV Reverse Planetary Roller Screw

Used for heavy-duty equipment

RV planetary roller screw is a high-precision and high-load design, with a non-circulating planetary roller design that can provide very stable driving torque. The screw is mostly used in applications requiring high loads, high speeds, and high accelerations. It offers higher reliability and longer lifespan in the smallest size.


  • Screw Diameter: 20mm
  • Nut Diameter: 45mm
  • Lead: 5mm
  • Stroke: 300mm
  • Load Capacity: 80KN
  • Application Scenarios: Robotic arms, heavy-duty equipment, etc.
